Main unit box, all IRISTEXT Mark models

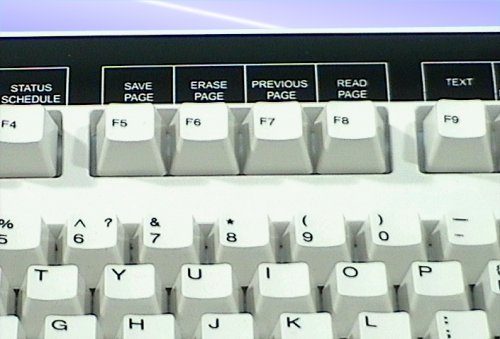

Clavier IRISTEXT Mk-I ou Mk-II

Keyboard on IRISTEXT Mark I or Mark II

F1 to F14 keys are used to access a specific message editing function.


Mark Back Panel

Click to enlarge back panel

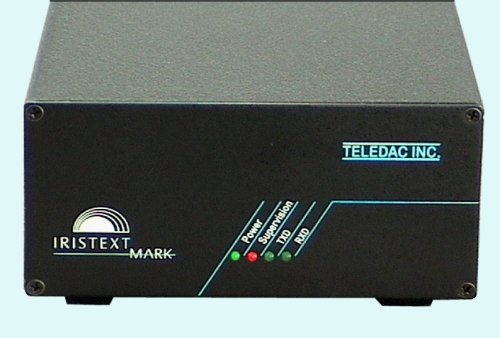

Front panel indicators, all IRISTEXT Mark models
  Power: the unit receives power
  Supervision: flashes when the unit is functional
  Txd: the unit is transmitting data
  Rxd: the unit is receiving data
